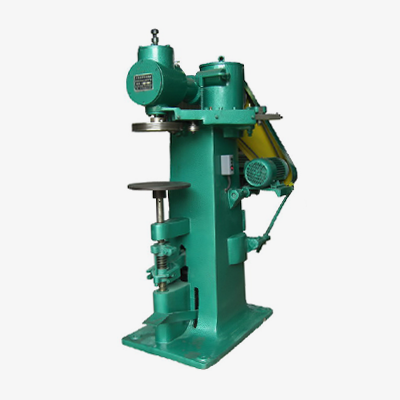

Semi-automatic sealing machine product introduction

Model No. lk/bmm-1
Name: Semi-automatic round can sealing machine
Tank diameter: φ40 to φ300 mm
Tank height: ≤380 mm
Iron plate thickness range: 0.2 to 0.5 mm
Production speed: 10 - 20 pcs/min
Motor power: 1.5 kW
Size: 1030×750×1650 mm
Weight: 800 kg

Semi-automatic canning machines generally include manual canning machines, pneumatic canning machines, electric canning machines, etc. Generally applicable to small business production, single piece production, small batch production factory.

Manual can sealer is currently used as a wide range of semi-automatic can sealer. Due to its stable mechanical properties and easy debugging, it is widely adopted by many large, medium and small factories, small workshops, stalls and shops.

The sealing principle of this model is simple. It is double-knife folded and press-sealed. The first knife is a folding knife, and the second knife is a curved fixed knife. Typically used to seal non-vacuum and inflatable cans.

Principle:

1. Place the jar with the lid on the bottom stand.

2. Press the can tightly against the die by pressing the pedal with your foot.

3. Turn the handle to make a knife and a second knife. Then turn the second knife quickly to close the lid tightly.

4. Press the accelerator to complete the output.
